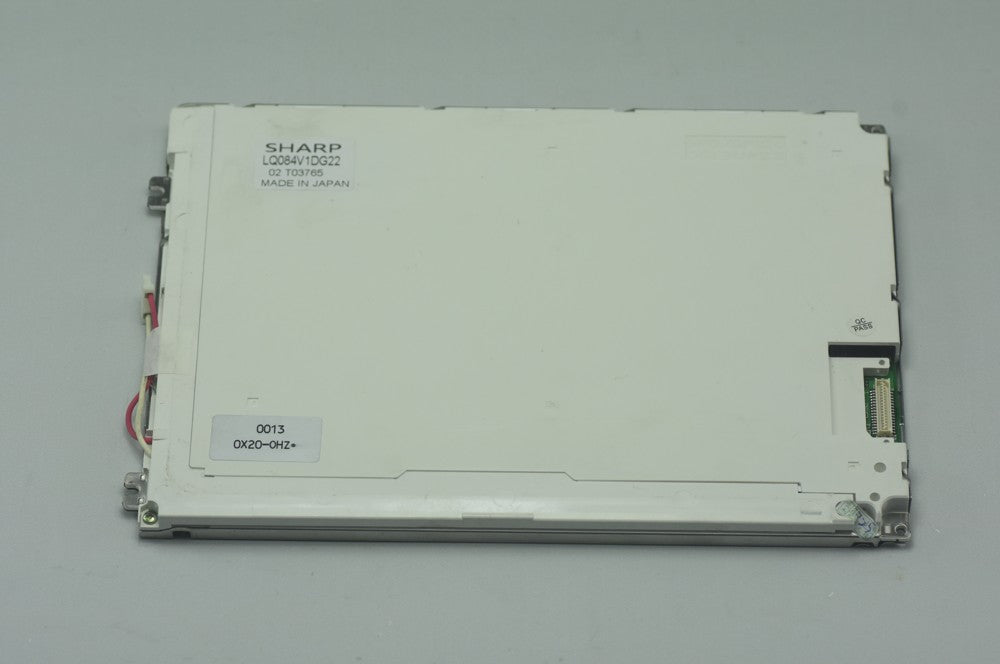

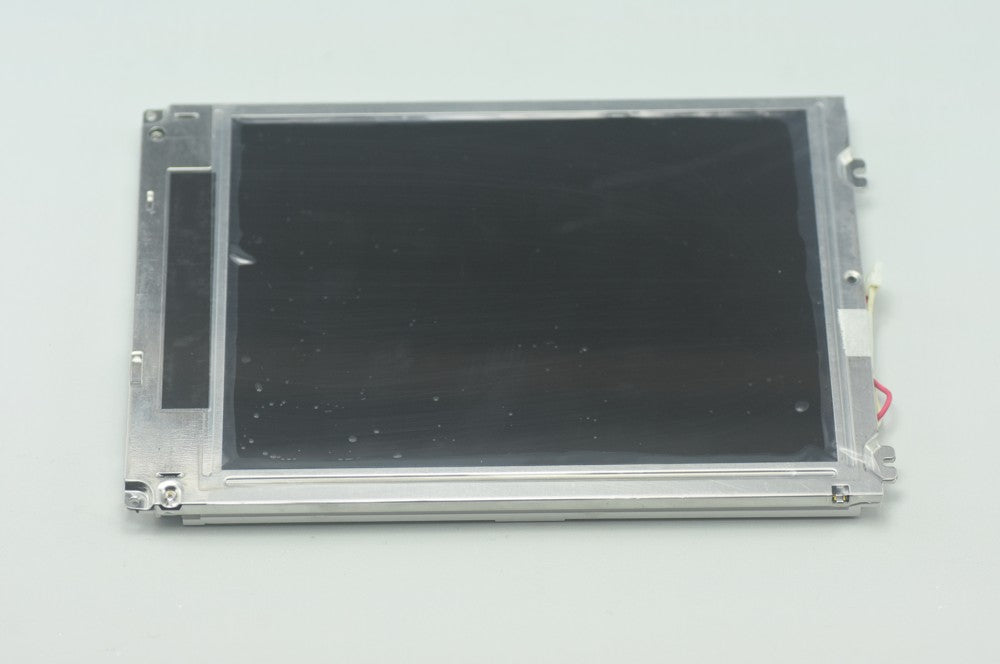

Home Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display
Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display
Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display
Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display
Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display
panels Sharp

Original LQ084V1DG22 SHAPP Screen 8.4" 640×480 LQ084V1DG22 Display

9999999999999
$264.00
777777777 SHARP-LHX-504016-50

Quantity

Sku:

LQ084V1DG22

Category:

panels Sharp

Tag:
Vendor:

PanelsStock

Type:

100% original

Description

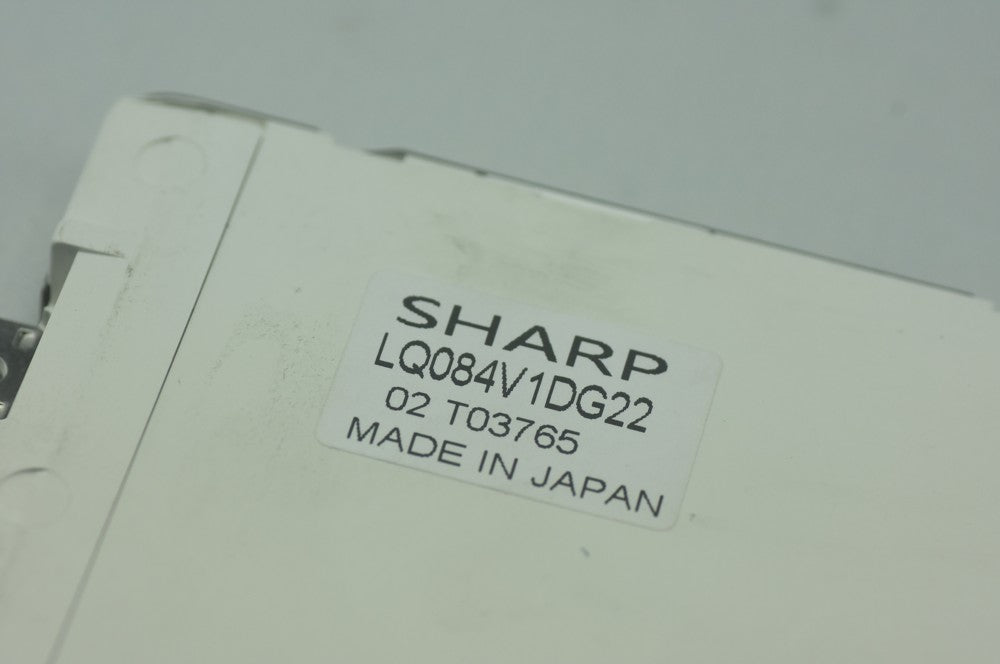

Panel Brand:SHARP
Panel Model:LQ084V1DG22
Panel Type:a-Si TFT-LCDPanel
Panel Size:8.4"
Resolution:640(RGB)×480 (VGA)
Display Mode:TN, Normally White, Transmissive
Surface:Antiglare (Haze 28%), Hard coating (3H)
Brightness:300 cd/m2 (Typ.)
Contrast Ratio:250 : 1 (Typ.) (Transmissive)
Display Colors:262K (6-bit)
Response Rime:20/40 (Typ.)(Tr/Td) (ms)
Viewing Angle:55/55/55/40 (Typ.)(CR?10) (L/R/U/D)

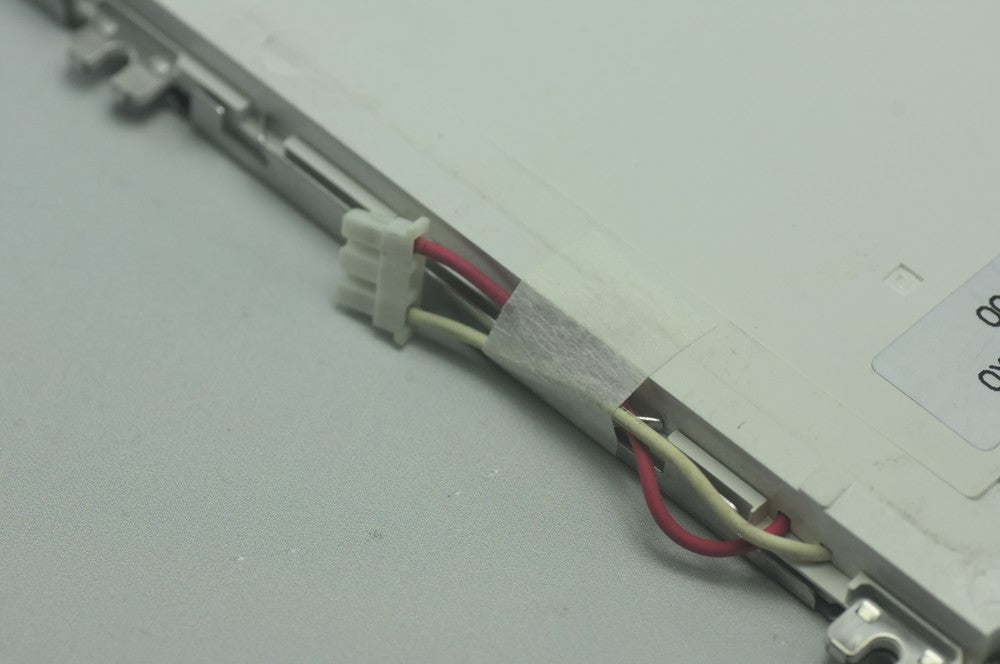

Lamp Type:CCFL

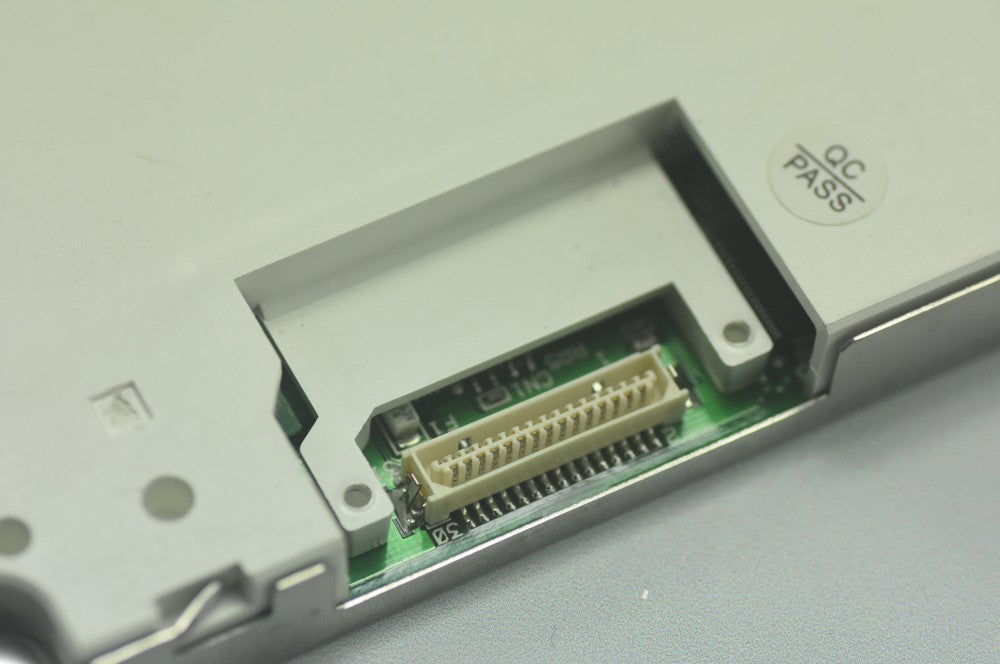

Signal Interface:Parallel RGB (1 ch, 6-bit)
Input Voltage:3.3/5.0V (Typ.)(VCC)
