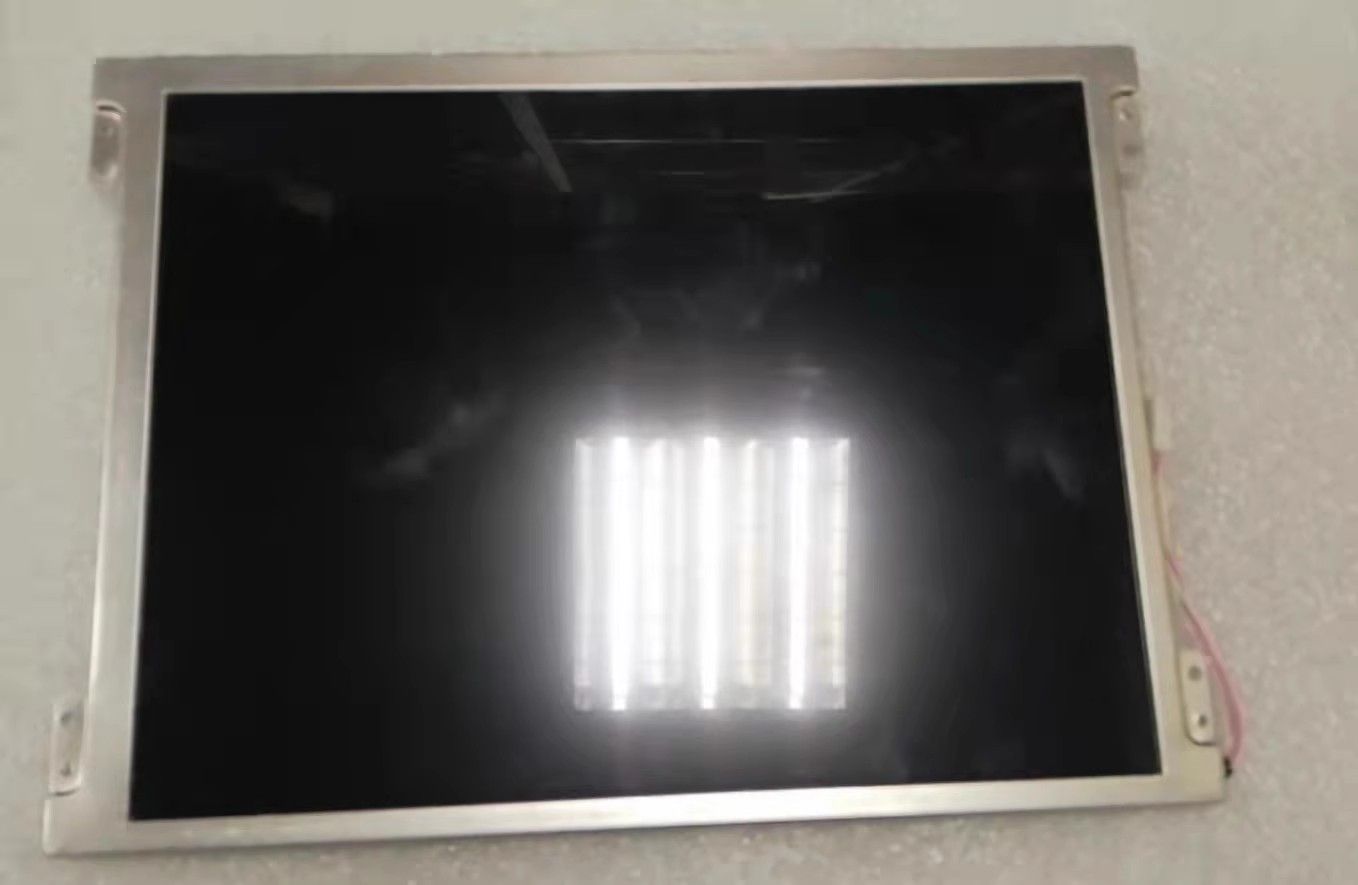

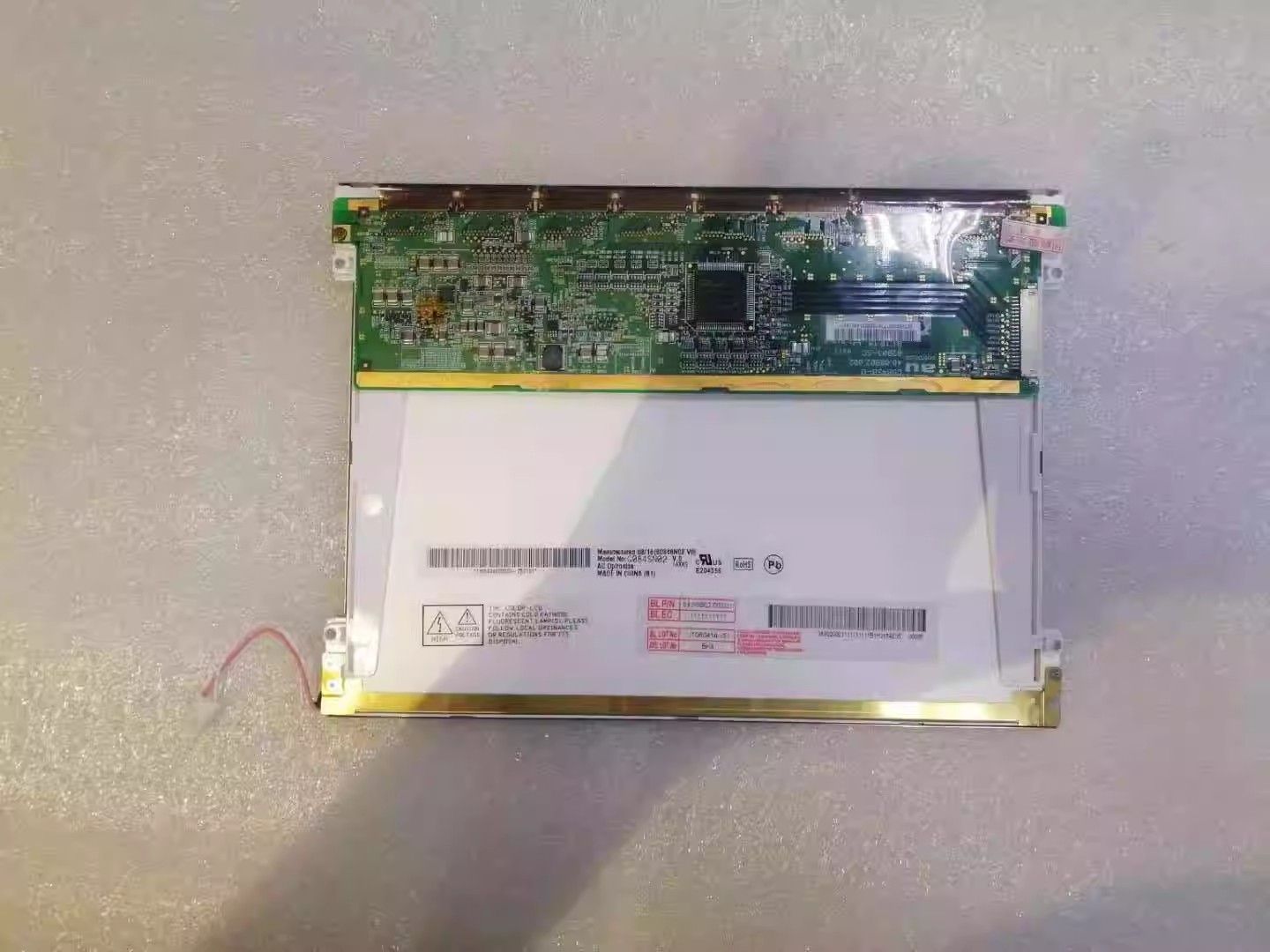

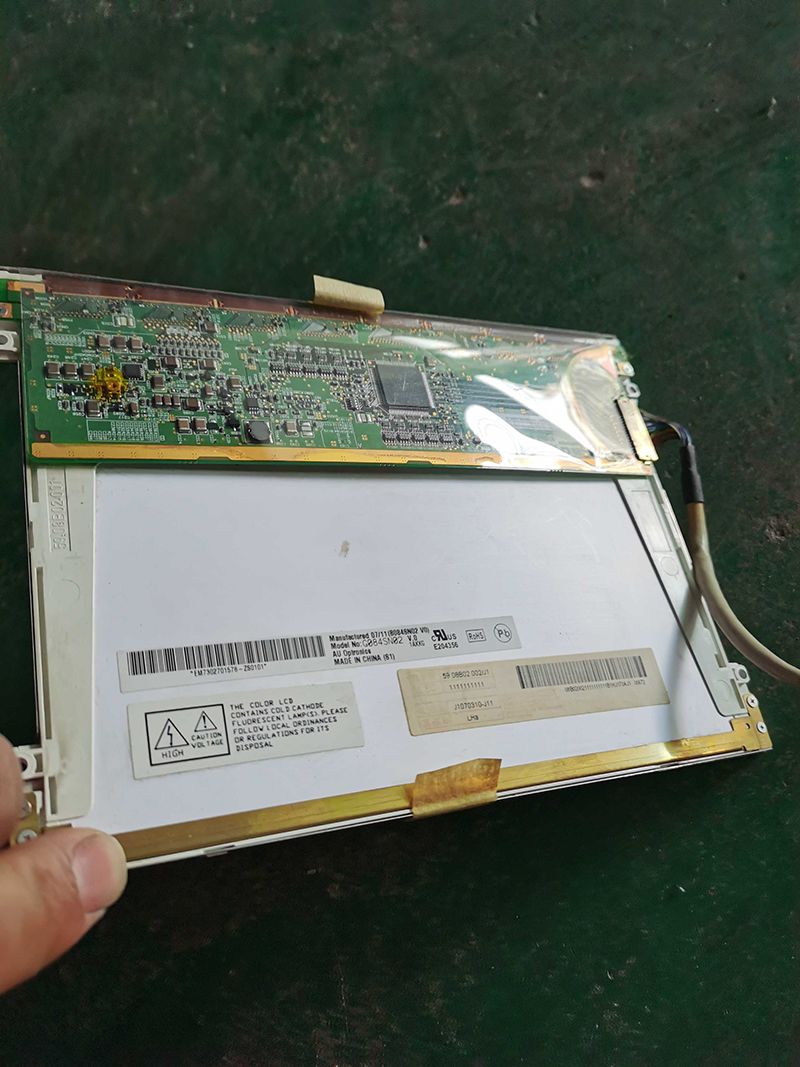

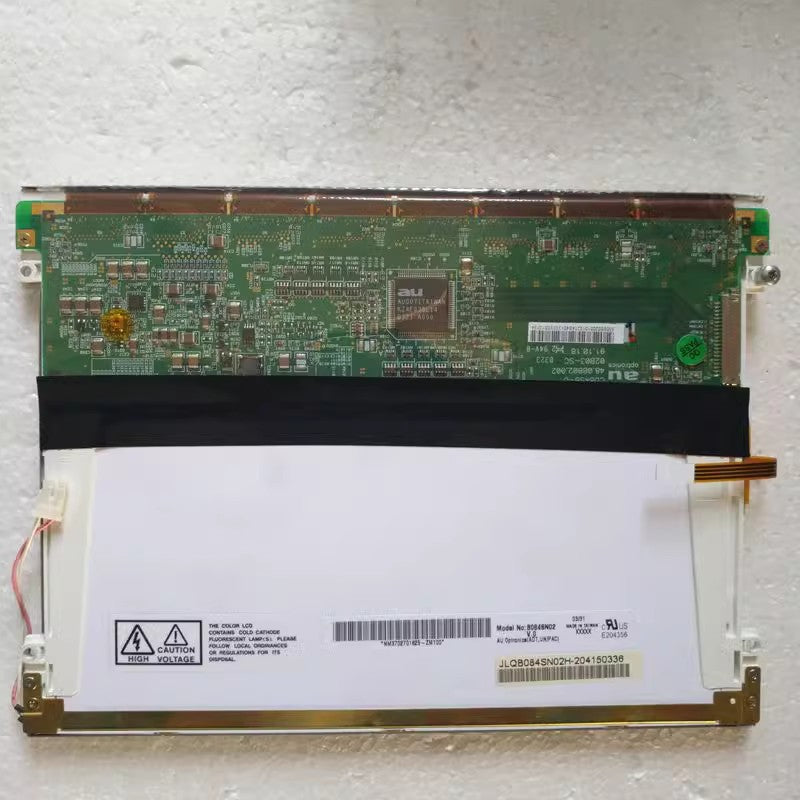

8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0
8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0
8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0
8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0
8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0
panels AUO

8.4 Inch (800*600) Industrial LCD Screen Display Panel G084SN02 V0 G084SN02 V.0

9999999999999
$211.00
777777777 LCD-AUO-300108-ZKL-018

Quantity

Sku:

G084SN02 V0

Category:

panels AUO

Tag:
Vendor:

PanelsStock

Type:

100% original

Specification
Brand AUO
Model G084SN02 V0
Type a-Si TFT-LCD
Size 8.4"
Aspect Ratio 4 : 3 (Width: Height)
Resolution 800*600
Display Mode Normal White
Surface Dispose Matte, Hard coating(3H)
Brightness 200cd/㎡(Typ.)
Contrast 500:1(Typ.)
Display Color 262K (6-bit )
Response Time 10/25 (Typ.)(Tr/Td) (ms)
View Angle 80/80/70/70(Typ.)(CR≥10) (L/ R/ U / D)
Scanning Frequency 60Hz
Tube Type 1pc CCFL
Singal Interface LVDS (1 ch, 6-bit)
Voltage 3.3V(Typ.)
Notice: The LCD screen can be widely used in industrial monitor, tablet PC, medical equipment and industrial electronic products.
