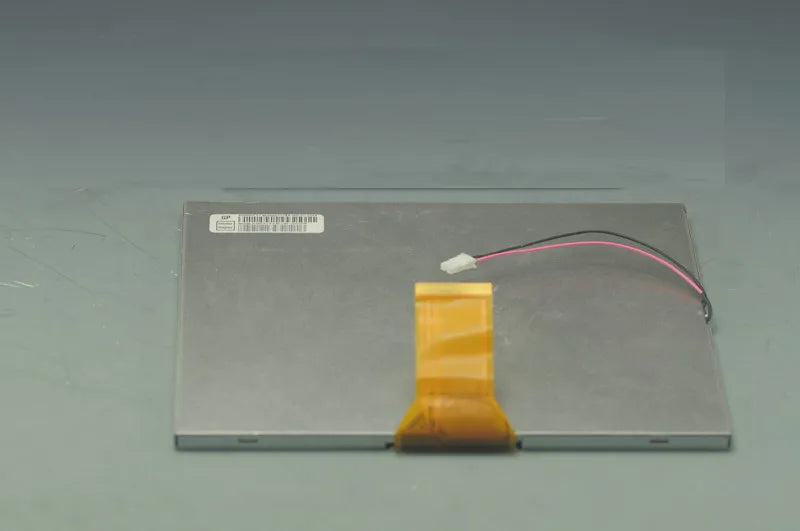

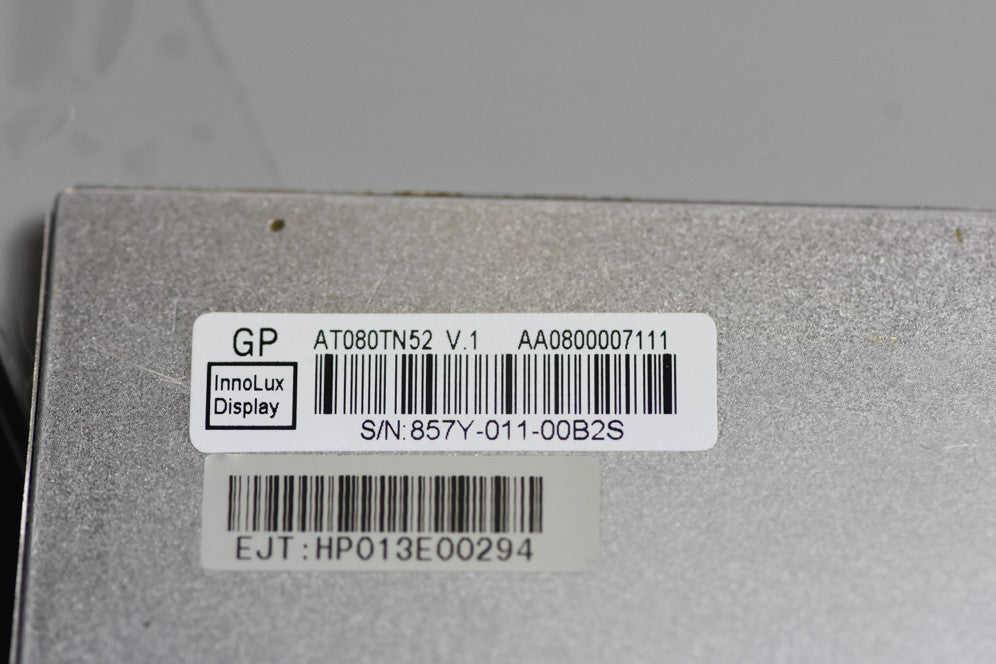

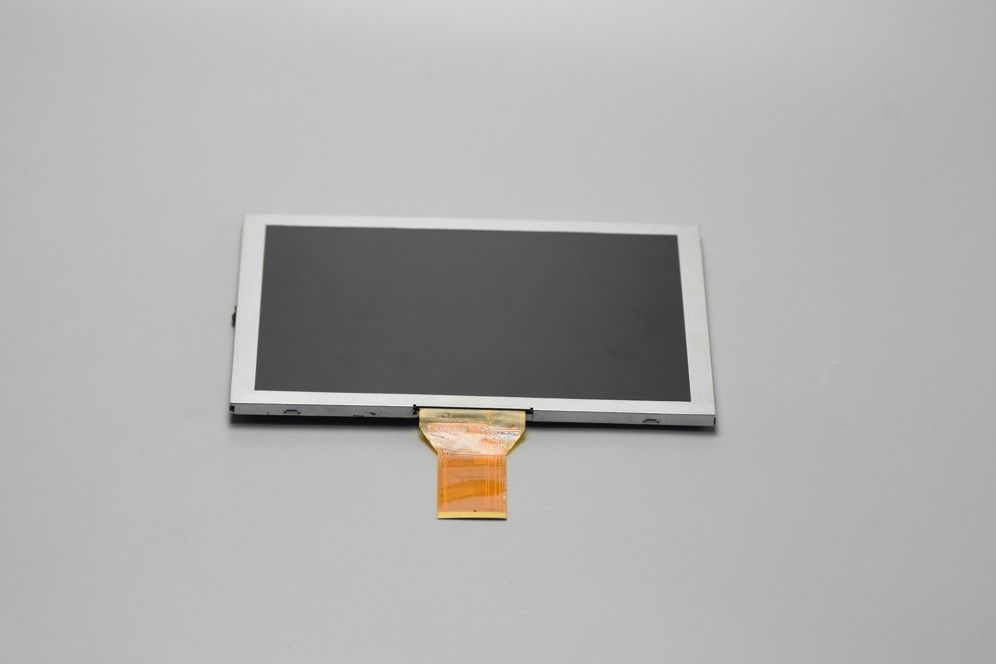

Panel brand: INNOLUX
Panel model: AT080TN52 V.1
Compatible Mode: EJ080NA-05A
Panel type: a-Si TFT-LCD
Panel size: 8.0"(inches)
Width Height Propotion: 16:9
Display Area: 162.0x121.5mm
Visual Area: 164.8x124.3mm
Outline Size:183.0x141.0mm
Resolution:800*600
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 250 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K/16.2M(6-bit / 6-bit + Dithering)
Response Time: 10/15 (Typ.)(Tr/Td)  (ms)
Visual Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz

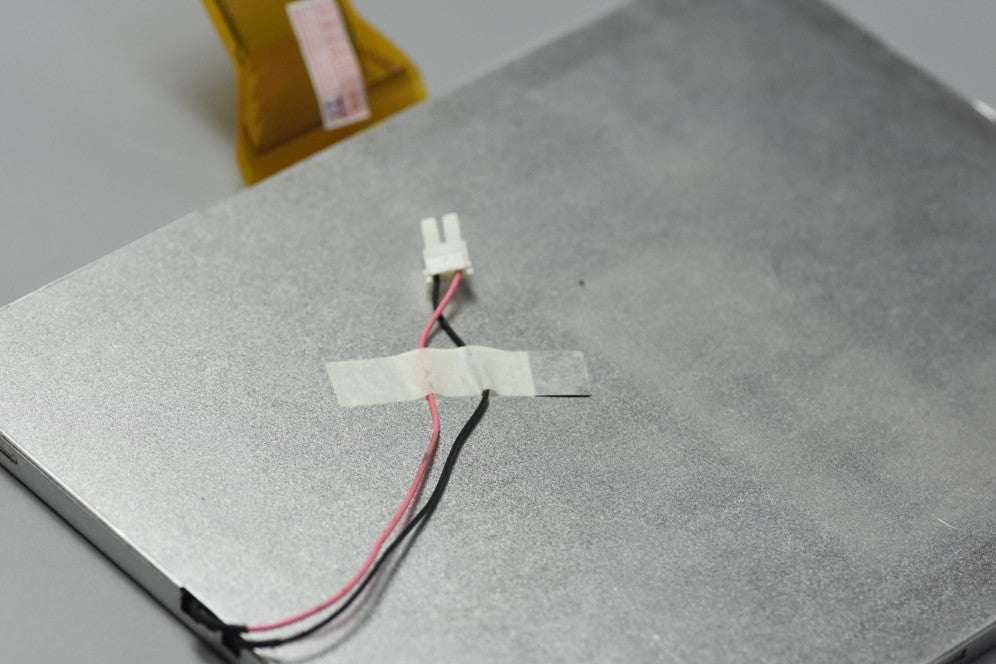

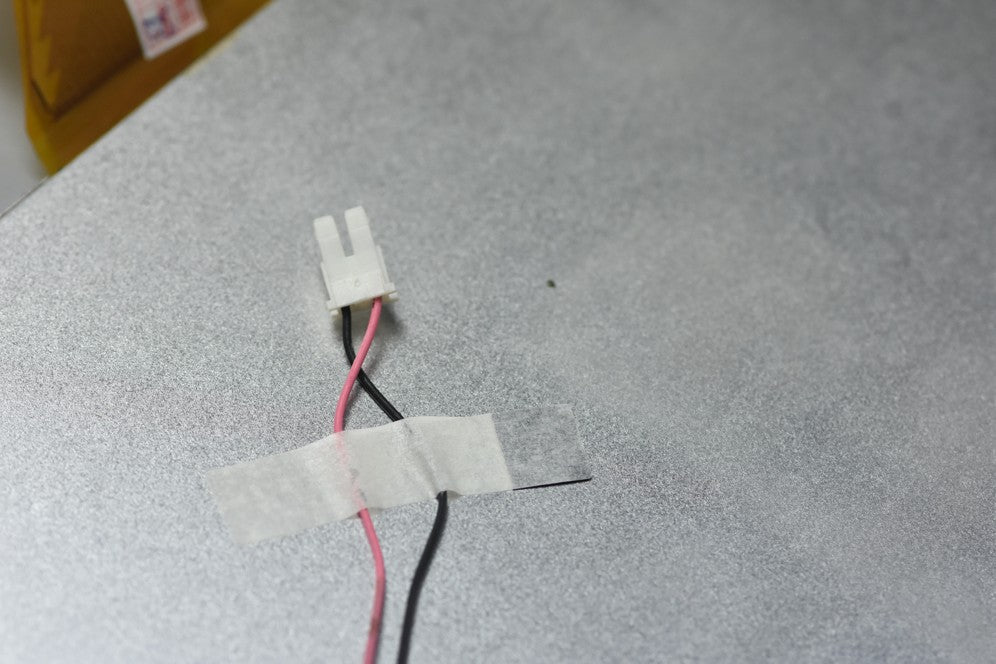

Lamp Type: 3S9PWLED
Signal Connector: Parallel RGB (1 ch, 6/8-bit)

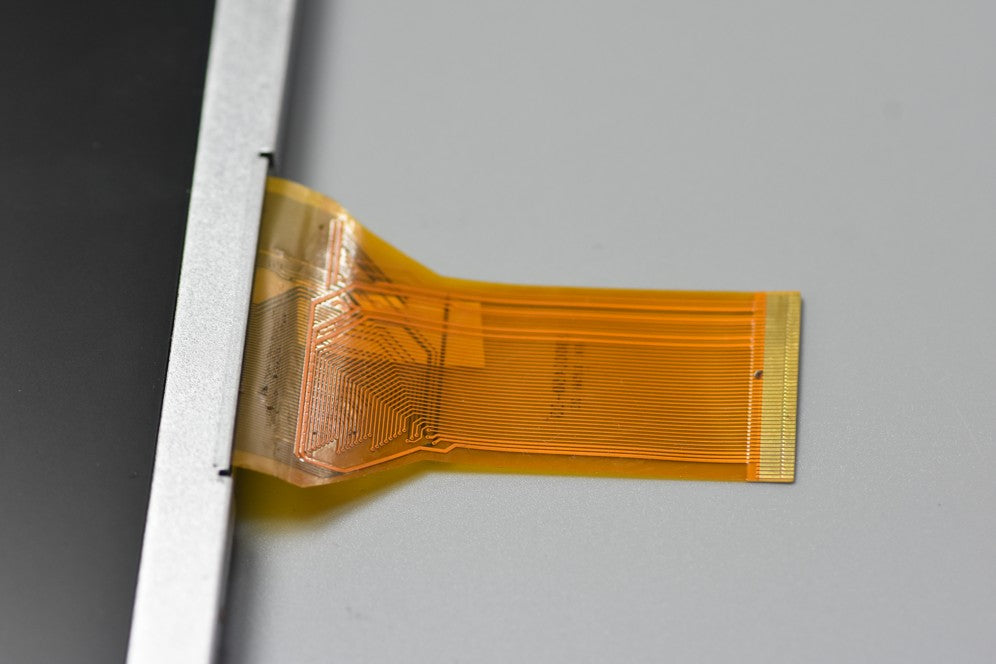

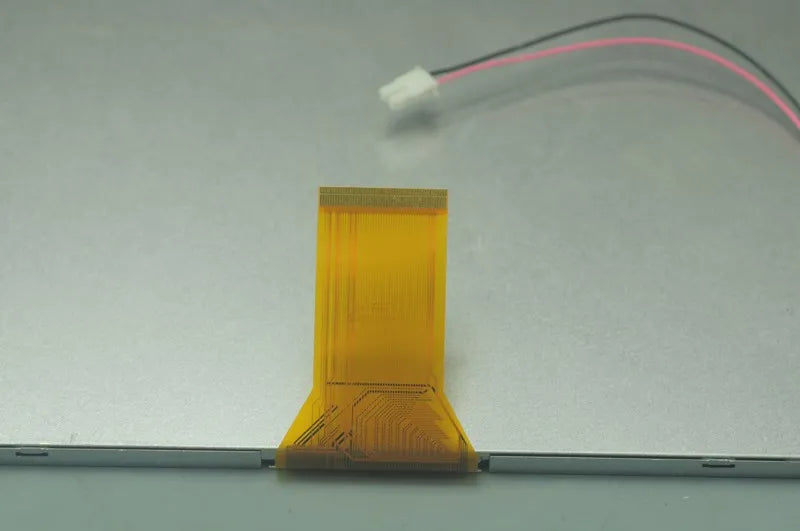

Connector: 50pins
Panel voltage: 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
