Home 19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen
19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen
19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen
19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen
19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen
AUO , LCD Panel

19.0" 1280*1024 LCD Panel M190EG01 V.0 M190EG01 V0 Screen

$241.29 $253.99

Quantity

Sku:

N/A

Category:

AUO ,

LCD Panel

Tag:

20250710-02-HSY-300115-ZKL-012

Vendor:

panelsmate

Type:

LCD Screen

Description
Panel model: M190EG01 V0
Panel type: a-Si TFT-LCD
Panel size:19.0"
Resolution: 1280*1024
Display mode: Premium MVA, Normally black, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 300 cd/㎡(Typ.)
Contrast: 1300:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Time: 15/5 (Typ.)(Tr/Td)  (ms)
Visual Angle: 89/89/89/898 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz

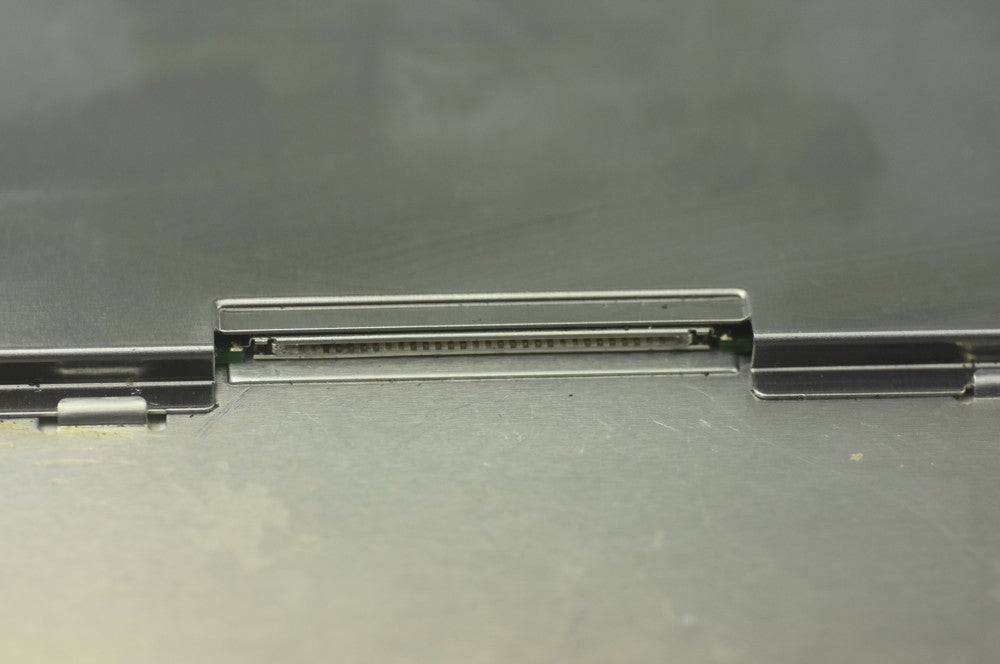

Signal Connector: LVDS(2 ch, 8-bit)
Backlight: 4pcs CCFL
Panel Voltage: 5.0V (Typ.)(VCC)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
